Product Detail

Model No.: TF Series

Brand Name: tongyu

TF Series parallel shaft helical gearmotor is a new generation mechanic-electrical integrated product, which designed basing on the modular system.

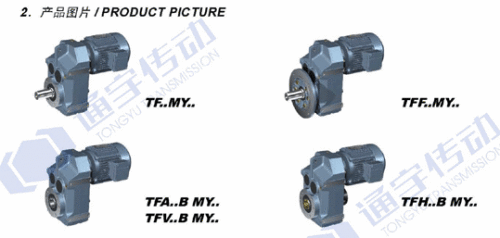

TF Series parallel shaft helical geared motors

SUMMARIZE

TF Series parallel shaft helical gearmotor is a new generation mechanic-electrical integrated product, which designed basing on the modular system. It can be connected respectively with motors such as common motor, brake motor, explosion-proofmotor, frequency conversion motor, servo motor, IEC motor and so on,, It can be mounted discretionary six orientation in solid space. This kind of product is widely used in drive fields such as textile, food-stuff, beverage, chemical industry, automatic arm ladder, automatic storage equipment, metallurgy, tobacco, environment-protection, logistics and so on.

PERFORMANCE CHARACTERISTICS

1.Transmission ratio with fine stage covers a wide range;

2.Compact structure takes up small room;

3.Low vibration; low noise; low energy dissipation;

4.Deft design; reliable and wearable; wideusage;

5.Modular, multistructure, can be combined in many forms to meet needs of all kinds of transmission conditions.

TF Series parallel shaft helical gearmotor is formed of 2-stage or 3-stage helical gears unit and motor, The helical gear which use the material of high quality alloy steel with the surface hardened takes shape through processing of high-precision equipment. Except the TF..28 housing with aluminum alloy, all are cast iron housing, Housing is exactly processed to ensure the shape and position precision, And it reaches advantageous performance such as: strong bearing capacity, long service-life; small volume; big ratio; light, high efficiency, low noise.

TF Series parallel shaft helical gearmotor has more then ten models. Combined with TRF series, the multi-stage gear reduction can be achieved.Power0.12-200KW; Ratio 3.77-31434; Torque 130-18000Nm. Lt can connect(foot, flange)discretionary and use multi-mounting positions according to customers¡± requirements.
